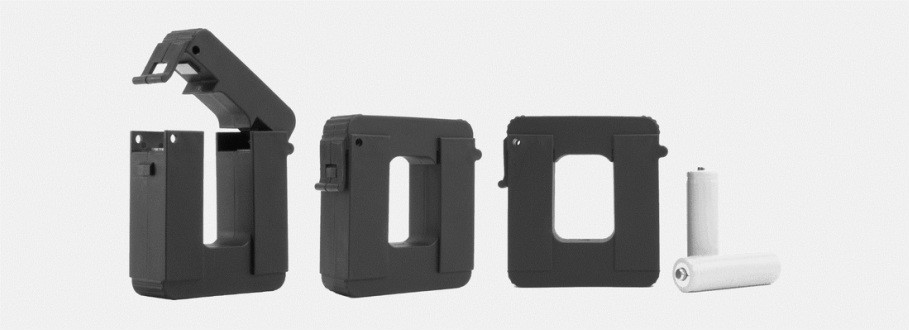

WC2 SERIES

---

  FEATURES

· 1.0” x 1.4” [25.4mm x 35.6mm] window opening (ID)
· Positive latch for secured installation
· Benchmark EZ-Open swing design
· Rigid housing case with UL 94V-0 plastic
· 6ft [1.83m] 16/18AWG black/white twisted pair wires
· Wire leads—UL1015 105ºC 600V
· Keying hole for locking or servicing tag
· Phoenix style and other connectors (optional)

 SPECIFICATIONS

· Standard Input Current  60-400A
· Frequency  40Hz — 400Hz
· Custom Turn-Ratios available
· Standard Accuracy 0.5%
· Approximate weight 0.5Lb [226.8g]
· ANSI C57.13, IEC61010-1 & cETLus
· UL2808 and CSA C22.2 61010-1-12
· Listed Component and CE Mark

 STANDARD MODELS

· WC2-100-MV333     (100A/0.333V)
· WC2-200-MV333     (200A/0.333V)
· WC2-300-MV333     (300A/0.333V)
· WC2-150-RA005     (150:5A)
· WC2-200-RA005     (200:5A)
· WC2-350-RA005     (350:5A)

  CUSTOM OUTPUT MODELS

· 100mA, 1A, 1V, 2V and others

WC2 mV Datasheet

WC2 5A Datasheet

---

  DIMENSIONS [mm]

Accessory - Cable Tie Wrap

---
