WCS020 SERIES

  FEATURES

· Ø0.20” [Ø5.08mm] window opening (ID)

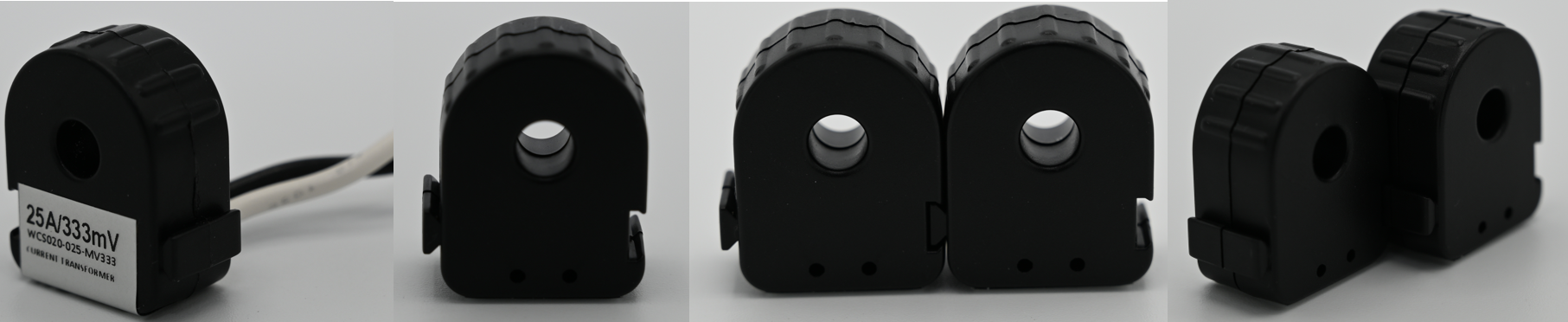

· CT cascading attachments (CT-2-CT™), no tools
· Ultrasonically sealed housing preventing dust ingestion
· Rigid housing case with UL 94V-0 plastic
· 2ft [610mm] 22AWG black/white twisted pair wires
· Lozenges on housing to provide glove-friendly grip
· Phoenix style and other connectors (optional)

 SPECIFICATIONS

· Standard Input Current  5-30A
· Frequency  40Hz — 400Hz
· Custom Turn-Ratios available
· Standard Accuracy 0.2%
· Approximate weight 0.10Lb [45.4g]
· UL2808 & CSA C22.2 61010-1-12
· ANSI C57.13, IEC61010-1 & cETLus
· Listed Component and CE Mark

 STANDARD MODELS

· WCS020-10-MV333     (10A/0.333V)
· WCS020-20-MV333     (20A/0.333V)
· WCS020-30-MV333     (30A/0.333V)

  CUSTOM OUTPUT MODELS

· 100mA, 1V, 2V and others

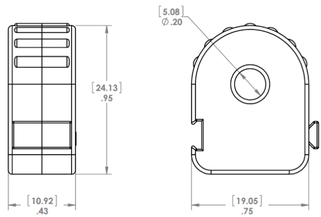

  DIMENSIONS [mm]
