WC3 SERIES

  FEATURES

· 0.75” x 0.93” [19.1mm x 23.6mm] window opening (ID)
· Positive latch for secured installation

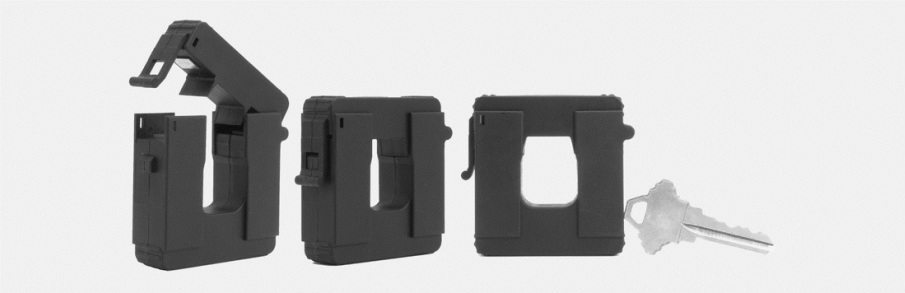

· Benchmark EZ-Open swing design
· Rigid housing case with UL 94V-0 plastic
· 6ft [1.83m] 18AWG black/white twisted pair wires
· Wire leads—UL1015 105ºC 600V
· Keying hole for locking or servicing tag
· Phoenix style and other connectors (optional)

 SPECIFICATIONS

· Standard Input Current  40-200A
· Frequency  40Hz — 400Hz
· Custom Turn-Ratios available
· Standard Accuracy 0.5%
· Approximate weight 0.31Lb [140.6g]
· ANSI C57.13, IEC61010-1 & cETLus
· UL2808 and CSA C22.2 61010-1-12
· Listed Component and CE Mark

 STANDARD MODELS

· WC3-100-MV333     (100A/0.333V)
· WC3-200-MV333     (200A/0.333V)
· WC3-100-RA1         (100:1A)
· WC3-200-RA1         (200:1A)

  CUSTOM OUTPUT MODELS

· 100mA, 1V, 2V and others

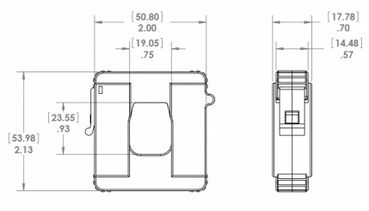

  DIMENSIONS [mm]

Accessory - Cable Tie Wrap
