WCR ROGOWSKI FLEXIBLE COILS

  FEATURES

· Ø3.6” - Ø22.0” [Ø9.14cm-Ø55.88cm] window opening (ID)
· Secured twist-lock connector with tamper-proof provision
· Abrasion resistance and flexible in low temperature
· UV protected outer jacket and weather-proof
· 6ft [1.8m] 24AWG black/red twisted pair wires
· Lozenges on connector to provide glove-friendly grip
· Phoenix style terminal block connector

 SPECIFICATIONS

· Std Input Current  100-30,000A
· Frequency  20Hz — 400Hz
· Custom Turn-Ratios available
· Standard Accuracy 0.75%
· Approx weight varied by length
· UL2808 & CSA C22.2 61010-1-12
· ANSI C57.13, IEC61010-1 & cETLus
· Listed Component and CE Mark

 STANDARD MODELS

· WCR16-2000-70MV            (2000A/70mV)
· WCR24-4000-70MV            (4000A/70mV)
· WCR36-6000-70MV            (6000A/70mV)

  CUSTOM OUTPUTS AVAILABLE

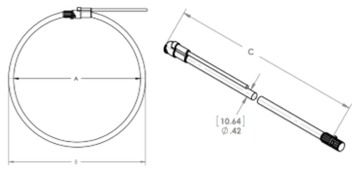

  DIMENSIONS [mm]
