WCS075 SERIES

  FEATURES

· Ø0.75” [Ø19.05mm] window opening (ID)
· Slot provision for mounting CT
· Ultrasonically sealed housing preventing dust ingestion
· Rigid housing case with UL 94V-0 plastic
· 6ft [1.8m] 18/16AWG black/white twisted pair wires
· Lozenges on housing to provide glove-friendly grip
· Phoenix style and other connectors (optional)

 SPECIFICATIONS

· Standard Input Current  80-200A
· Frequency  40Hz — 400Hz
· Custom Turn-Ratios available
· Standard Accuracy 0.2%
· Approximate weight 0.6Lb [272.2g]
· UL2808 & CSA C22.2 61010-1-12
· ANSI C57.13, IEC61010-1 & cETLus
· Listed Component and CE Mark

 STANDARD MODELS

· WCS075-100-MV333            (100A/0.333V)
· WCS075-160-MV333            (160A/0.333V)
· WCS075-200-MV333            (200A/0.333V)
· WCS075-150-RA5                 (150/5A)
· WCS075-180-RA5                 (180/5A)
· WCS075-200-RA5                 (200/5A)

  CUSTOM OUTPUT MODELS

· 100mA, 1V, 2V and others
· 100mA, 1V, 2V and others

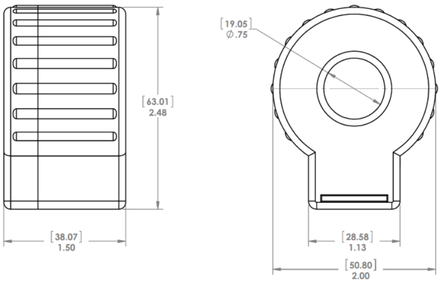

  DIMENSIONS [mm]

333mV MODEL
5A MODEL
333mV MODEL
5A MODEL
